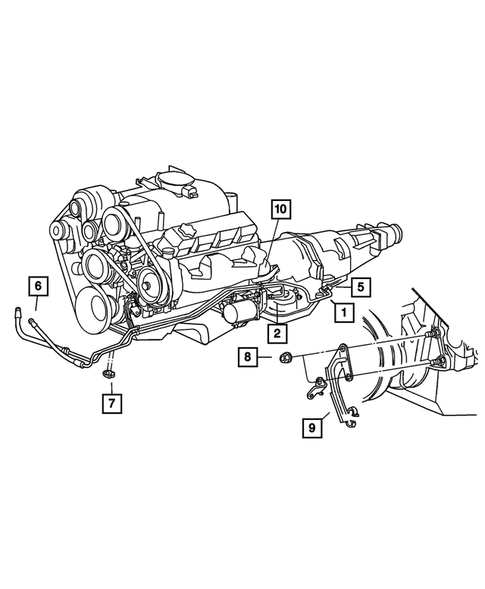

Lines, Transmission Oil Cooler for 2003 Dodge Dakota
No.
Part # / Description / Price
Price
N/A
Transmission Hose And Valve
Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: TRANSMISSION
N/A
Oil Cooler Pressure Valve Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Pressure
1
Oil Cooler Tube And Hose, Return Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Return.
1
Oil Cooler Tube And Hose, Return Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Return.
2
2
Oil Cooler Tube And Hose, Pressure Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Pressure.
5
Flared Tube Nut Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Transmission Cooler Lines to Train
7
Oil Cooler Tube Clip Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: With [NMC,NMS][After 3-7-03]
8
Hex Flange Nut Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .375-16. Oil Cooler Bracket mounting
MSRP $5.30
$3.60
MSRP $5.30
$3.60
8
Hex Flange Nut Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .375-16. Oil Cooler Bracket mounting
9
Oil Cooler Tube Bracket, Front Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
10
Oil Cooler Tube Bracket, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear.

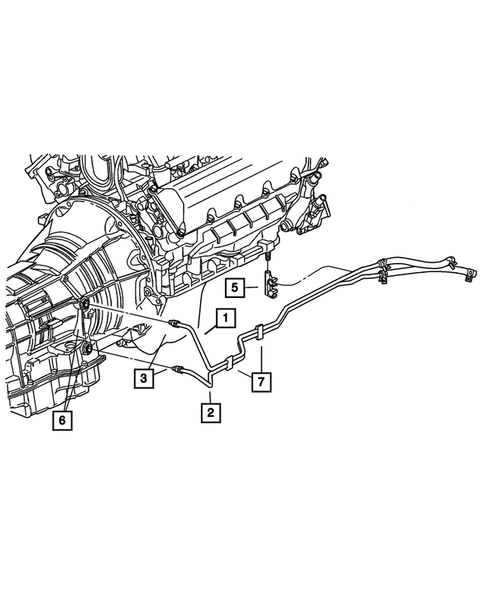

No.
Part # / Description / Price
Price
N/A
Nut Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: .625-18. Oil Cooler Line Attaching
1
Oil Cooler Tube And Hose, Pressure Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Pressure.
2
Oil Cooler Tube And Hose, Return Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Return.
2
Oil Cooler Tube And Hose, Return Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Return.
5
Cooler Lines Clip, Mounting Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Master Cylinder Flex Line Primary to Secondary
6
Transmission Case Nut Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Fittings for the Cooler Tubes at the Transmission Case
7
Oil Cooler Tube Clip Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: With [NMC,NMS][After 3-7-03]
