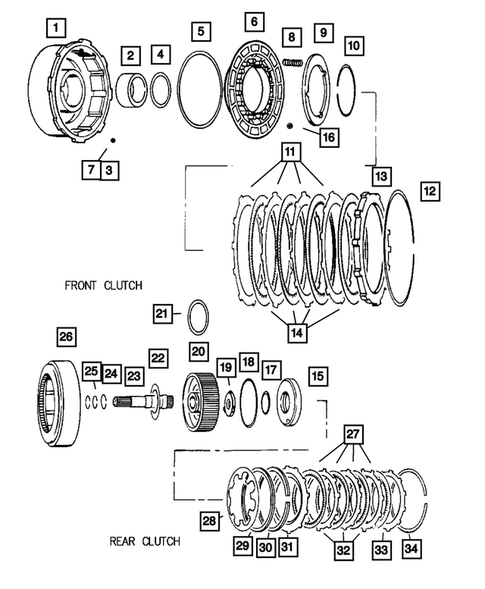

Gear Train for 2006 Dodge Ram 2500
No.
Part # / Description / Price
Price
![52854214AA - Automatic Transmission 4 Speed [DG8]: Clutch Retainer for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/0876a2abe5c429c0de9152b0d297ce8f.webp "52854214AA - Automatic Transmission 4 Speed [DG8]: Clutch Retainer for Mopar")
![4058647 - Automatic Transmission 4 Speed [DG8]: Front Clutch Bushing for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/07c0b70cdbe7881df60cb6ab284890e9.webp "4058647 - Automatic Transmission 4 Speed [DG8]: Front Clutch Bushing for Mopar")
3
![147483 - Automatic Transmission 4 Speed [DG8]: Check Ball for Mopar Image](http://cdn-illustrations.revolutionparts.io/strapr1/fc791803b8419106fac17acce93e315a/bb7909d7dcff03247d70cdcc02389ebd.png "147483 - Automatic Transmission 4 Speed [DG8]: Check Ball for Mopar")
Check Ball
Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Dia-.187. Transmission Overdrive Clutch Piston Check Valve
4
Front Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Front Clutch Piston, Inner
5
Front Piston Clutch Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Front Clutch Piston, Outer
9
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Front. Clutch Piston Spring
10
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Frt. Clutch, Inner, .060" Thk., 3" I.D.
![2124826AB - Automatic Transmission 4 Speed [DG8]: Clutch Separator Plate for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/f8d08a5e310d1bea3459deba47dac502.webp "2124826AB - Automatic Transmission 4 Speed [DG8]: Clutch Separator Plate for Mopar")
12
![3410570 - Automatic Transmission 4 Speed [DG8]: Snap Ring for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/1d7a659a26dd0850250b90eb07dabf8d.webp "3410570 - Automatic Transmission 4 Speed [DG8]: Snap Ring for Mopar")
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Frt. Clutch, .050" Thk., 7-8/64" O.D.
13
Transmission Clutch Reaction Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Rear. Clutch Reactioin
![4617201AB - Automatic Transmission 4 Speed [DG8]: Direct Clutch Disc for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/e5f8da0ceb80da606af90fadd9923db6.webp "4617201AB - Automatic Transmission 4 Speed [DG8]: Direct Clutch Disc for Mopar")
17
Rear Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Rear Clutch Piston, Inner
18
Rear Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Rear. Clutch Piston, Outer
19
Output Shaft Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Red .068. Intermediate Shaft, Thrust, w/ 3 Point Bronze Face, .068" Thk.
20
![4617855AB - Automatic Transmission 4 Speed [DG8]: Transmission Retainer for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/d7e9cf290ccf6d33cea555bc5ff48854.webp "4617855AB - Automatic Transmission 4 Speed [DG8]: Transmission Retainer for Mopar")
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Rear Clutch Piston
21
Rear Clutch Retainer Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Piston Retainer Oil Seal Lock, 1-7/8" O.D.
22
Front Clutch Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Front. Clutch Thrust, Rear
23
![4617396 - Automatic Transmission 4 Speed [DG8]: Transmission Input Shaft for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/ddd6679bd0d66825aaeb7f50a79ce608.webp "4617396 - Automatic Transmission 4 Speed [DG8]: Transmission Input Shaft for Mopar")
Transmission Input Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Input.
24
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Rr. Clutch Piston Retainer, .060" Thk., 1-31/64" O.D.
25
![4617418AC - Automatic Transmission 4 Speed [DG8]: Input Shaft Seal for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/bdecc803d79d35c58700327e553b6f0d.webp "4617418AC - Automatic Transmission 4 Speed [DG8]: Input Shaft Seal for Mopar")
Input Shaft Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: INPUT SHAFT
![52854149AA - Automatic Transmission 4 Speed [DG8]: Rear Clutch Retainer for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/d81ff9ec5016b0941e6dcf60afc1a889.webp "52854149AA - Automatic Transmission 4 Speed [DG8]: Rear Clutch Retainer for Mopar")
28
29
Rear Clutch Piston Spacer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Rr. Clutch Piston Spring, Plastic, 6-13/16" O.D
30
Rear Clutch Spring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Rear. Clutch Wave
31
Clutch Pressure Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Rear. Clutch Pressure, Front
32
![52118812AA - Automatic Transmission 4 Speed [DG8]: Clutch Separator Plate for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/4bf7cdc39518992db88c6c962f78ae01.webp "52118812AA - Automatic Transmission 4 Speed [DG8]: Clutch Separator Plate for Mopar")
No.
Part # / Description / Price
Price
1
![5093156AA - Automatic Transmission 4 Speed [DG8]: Transmission Output Shaft for Mopar Image](http://cdn-illustrations.revolutionparts.io/strapr1/cb1478b269c548690bcebe4e564ab7a2/df24065d3a411d2ca89878f7d4884d27.png "5093156AA - Automatic Transmission 4 Speed [DG8]: Transmission Output Shaft for Mopar")
1
4
![4461008 - Automatic Transmission 4 Speed [DG8]: Output Shaft Bearing for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/d22e7c6cb2906668132ad0c52194e717.webp "4461008 - Automatic Transmission 4 Speed [DG8]: Output Shaft Bearing for Mopar")
Output Shaft Bearing Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Front.
![4461060 - Automatic Transmission 4 Speed [DG8]: Snap Ring for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/408158a626f54f5b88ef40e52f4d1f54.webp "4461060 - Automatic Transmission 4 Speed [DG8]: Snap Ring for Mopar")
6
![4461068 - Automatic Transmission 4 Speed [DG8]: Snap Ring for Mopar Image](http://cdn-illustrations.revolutionparts.io/strapr1/a39998f7ff94f644b64b1ac4d8ddd65d/32cb941520bcfc497f6e90926684e5f9.png "4461068 - Automatic Transmission 4 Speed [DG8]: Snap Ring for Mopar")
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: Retainer snap ring for output shaft bearing
7
![2466224 - Automatic Transmission 4 Speed [DG8]: Output Shaft Bearing for Mopar Image](http://cdn-illustrations.revolutionparts.io/strapr1/f590ebacda53d336184fa0a9cebdfc83/1b1a923c30f2b66302ddb9e9ddfa06a8.png "2466224 - Automatic Transmission 4 Speed [DG8]: Output Shaft Bearing for Mopar")
Output Shaft Bearing, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: 52105959aa. From 9/10/02. Rear.
8
![4461069 - Automatic Transmission 4 Speed [DG8]: Snap Ring for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/bfc120f044f17b343d209952ef12797c.webp "4461069 - Automatic Transmission 4 Speed [DG8]: Snap Ring for Mopar")
Snap Ring, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Rear.
MSRP $11.55
$7.95
MSRP $11.55
$7.95
No.
Part # / Description / Price
Price
1
![4637078AB - Automatic Transmission 4 Speed [DG8]: Transmission Clutch Seal Package for Mopar Image](http://cdn-illustrations.revolutionparts.io/strapr1/43a7c5acb57d390f5bf4c010e7b87d75/448c75cfe94130ddf269a8167a7a21b1.png "4637078AB - Automatic Transmission 4 Speed [DG8]: Transmission Clutch Seal Package for Mopar")

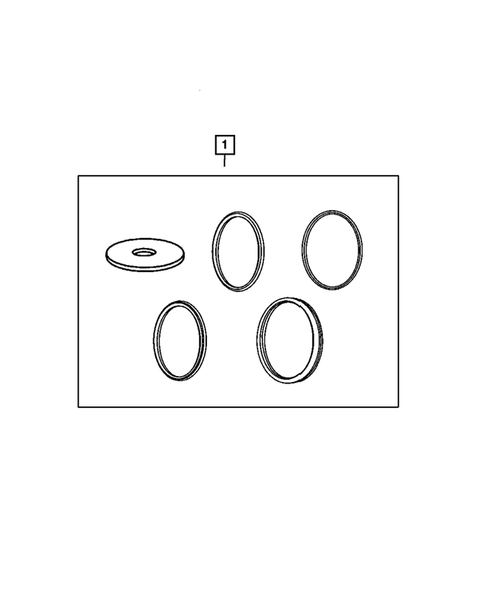

Transmission Clutch Seal Package Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION.
Description: [4637078ab also for an1].
