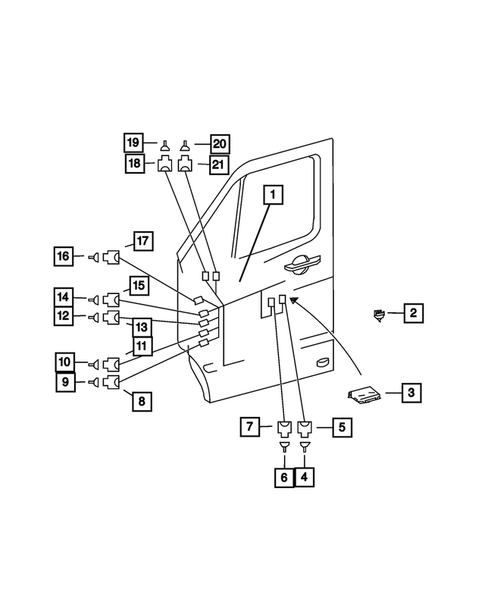

Wiring-Body and Accessories for 2009 Dodge Sprinter 3500

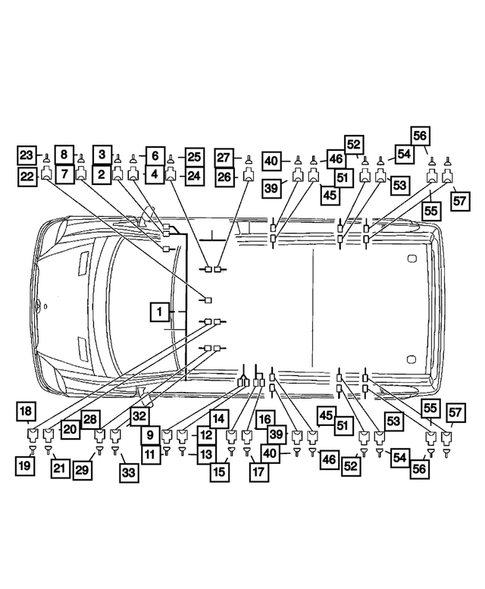

No.
Part # / Description / Price
Price
N/A
Sliding Door Left Wire Track, Left
Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Dummy Plug [X176/3]. Dummy Plug [M3/5]. Dummy Plug [X64/14]. Green. With [gke+rc5].
N/A
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Flat Plug [1.5 - 2.5 MM2; X174/1; X174/2]
N/A
Male Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.75 MM2; X43/11; X43/12]
N/A
N/A
N/A
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [1.5 - 2.5 MM2 SLK 2.8, X18 / 23 S]
N/A
Cover Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [X18 / 51B] Only For Use With [68011342AA]
N/A
Grommet Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Insulator Grommet / Red [1.01 - 2.5 MM2]
N/A
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Front Passenger Power Window [1.5-2.5;MM2;3PT;M10/1]
N/A
N/A
Wiring Connector, Right, Rear Door Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [6 Pin; X8/21]
1
7
Male Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [1.0 - 2.5 MM2; A2/18]
13
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4.0 MM2 ; X19/6 S, X19/7 S]
14
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [1 PIN;R22/2] With [NHW and GBG]
18
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Connector, Backup Camera; [6Pin; X169]
20
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Connector, Backup Camera [6 Pin; X169]
22
Connector, Right, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: 68011247AA. [4 Pin; X8/20]
24
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Anti-Theft Alarm Interior Protection [2 Pin MQS; X42/28]
26
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Anti-Theft Alarm Protection [2 Pin MQS; X42/28]
32
39
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Sliding Door Assist System [4 Pin; X174/1; X174/2]
40
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [0.5 - 1.0 MM2; JPT; Y58/1]
45
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Power Door Assist [4 Pin MCP2.8; X174/1; X174/2]
46
51
Connector, Right & Left, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Door. Connector Central Locking Motor [3 Pin;X43/11; X43/2]
53
Connector, Right & Left, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door. Central Locking Motor [3 Pin X43/11; X43/12]
55
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [4 Pin SLK 2.8; X18/64]
55
Connector, Right, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: 68011247AA. [6 Pin; X8/21]
56
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4.0 MM2 SLK 2.8;X19/6 B, X19/7 B]
57
Connector, Left, Rear Door Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4 Pin; X8/22]
57
Connector, Left, Rear Door Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4 Pin; X8/23]
57
Connector, Right, Rear Door Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4 Pin; X8/20]

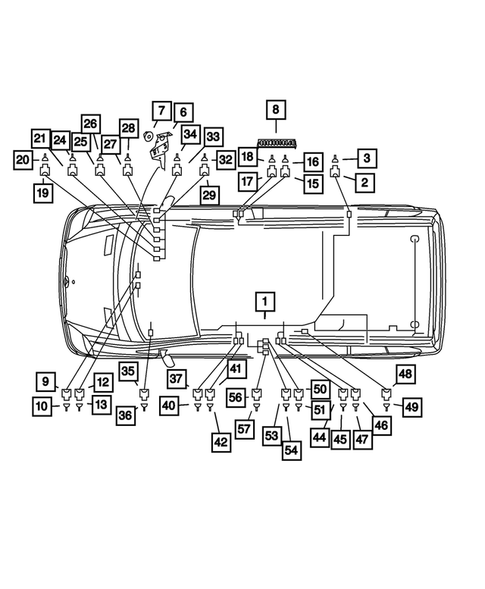

No.
Part # / Description / Price
Price
N/A
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door Separation Point [10-PIN;X35/2]
N/A
Sliding Door Left Wire Track, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Dummy Plug [X176/3]. Dummy Plug [M3/5]. Dummy Plug [X64/14]. Green. With [gke+rc5].
N/A
N/A
Cover Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [X18 / 51B] Only For Use With [68011342AA]
N/A
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [1.5 - 2.5 MM2 SLK 2.8, X25 / 15]
N/A
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4.0 MM2 SLK 2.8;X19/6 B, X19/7 B]
2
Sliding Door Left Wire Track, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [8Pin. With [gke+rc5]. [8 Pin. Slk 2.8: x26/27 s].
6
Bracket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Can Connector To [A] Pillar Right
7
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6X1.00. BSG Bracket To Intake Manifold
8
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Potential Distribuitor [22 Pin]
9
Wiring Repair Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Temperature Sensor / [2 Pin B10/6]]
12
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: 2 Way. Connector Transmission Neutral / [2 Pin; X162]
13
15
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [2 Pin MQS; H4/79] Tweeter At Sliding Door & Quarter Panel
17
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door Control Unit 3-PIN;N69/1
19
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 6 Way. Cockpit Interior Plug Connector [6 Pin, X169/7]
21
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [28 Pin MQS, X18/56]
25
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [14 Pin X18/49]
27
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [18 Pin MQS; X18/55]
29
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [10 Pin, X18/60]
33
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [4 Pin SLK 2.8; X18/64]
34
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [1.5 - 2.5 MM2; SLK; N28/1]
35
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [1 Pin LSK 8; X4/49]
40
Male Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.75 MM2; X43/11; X43/12]
42
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Contact Spring [0.5 - 1.0 MM2 SLK; X8/22; X8/21]
48
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Stationary Heater Plug Connector [7 Pin; X72/10]
50
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Connector Low Frame [6 Pin, X176/1]
53
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Connector Low Frame [6 Pin / COD. B X176/2]
56
Female Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Coupling [18 Pin] Low Frame Connector [X176/3]

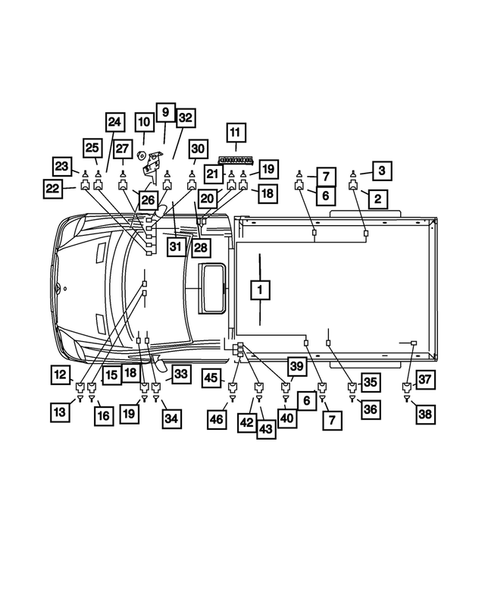

No.
Part # / Description / Price
Price
N/A
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door Separation Point [10-PIN;X35/2]
N/A
Sliding Door Left Wire Track, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Dummy Plug [X176/3]. Dummy Plug [M3/5]. Dummy Plug [X64/14]. Green. With [gke+rc5].
N/A
2
Sliding Door Left Wire Track, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [8Pin. With [gke+rc5]. [8 Pin. Slk 2.8: x26/27 s].
3
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [1.5 - 2.5 MM2 SLK 2.8, X25 / 15]
6
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Connector, Side Marker Lamps [3 Pin; X57/8 / X57/9]
9
Bracket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Can Connector To [A] Pillar Right
10
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6X1.00. BSG Bracket To Intake Manifold
11
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Potential Distribuitor [22 Pin]
12
Wiring Repair Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Temperature Sensor / [2 Pin B10/6]]
15
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: 2 Way. Connector Transmission Neutral / [2 Pin; X162]
18
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [2 Pin MQS; H4/79] Tweeter At Sliding Door & Quarter Panel
20
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door Control Unit 3-PIN;N69/1
22
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 6 Way. Cockpit Interior Plug Connector [6 Pin, X169/7]
24
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [14 Pin X18/49]
25
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4.0 MM2 SLK 2.8;X19/6 B, X19/7 B]
26
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [18 Pin MQS; X18/55]
28
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [10 Pin, X18/60]
31
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [4 Pin SLK 2.8; X18/64]
32
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [1.5 - 2.5 MM2; SLK; N28/1]
33
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [1 Pin LSK 8; X4/49]
37
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Stationary Heater Plug Connector [7 Pin; X72/10]
39
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Connector Low Frame [6 Pin, X176/1]
42
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Connector Low Frame [6 Pin / COD. B X176/2]
45
Female Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Coupling [18 Pin] Low Frame Connector [X176/3]
No.
Part # / Description / Price
Price
2
Retainer Clip Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Entrance Lamp Separation Point 6.5-7MM
4
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cockpit Interior Plug Connector [4 Pin SLK 2.8; X18/64]
5
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4.0 MM2 SLK 2.8;X19/6 B, X19/7 B]
7
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door Control Unit 20-PIN;N69/1
7
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door Control Unit 3-PIN;N69/1
8
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door Separation Point [10-PIN;X35/2]
10
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4.0 MM2 ; X19/6 S, X19/7 S]
11
Connector, Left, Rear Door Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4 Pin; X8/23]
14
Male Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.75 MM2; X43/11; X43/12]
15
Connector, Right, Rear Door Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4 Pin; X8/20]
15
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door Separation Point 2-PIN;X35/44
15
17
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [2 Pin MQS; H4/79] Tweeter At Sliding Door & Quarter Panel
18
Connector, Right & Left, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Door. Connector Central Locking Motor [3 Pin;X43/11; X43/2]
21
Connector, Right & Left, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Door. Central Locking Motor [3 Pin X43/11; X43/12]
No.
Part # / Description / Price
Price
7
Wiring Shield Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: With [MWJ Or MX2 Or MX1] Without [GKE Or 4XK Or GEX]
10
Wiring Shield Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: With [4Z1 Or 4XS+MWJ Or MX2 Or MX1]
11
Wiring Shield Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: WIth [GKE+MWJ Or MX2 Or MX1]
13
Wiring Shield Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: With [MWJ Or MX2 Or MX1+GKE]
14
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6X1.00. BSG Bracket To Intake Manifold
19
Wiring Shield Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Floor Channel Extension
No.
Part # / Description / Price
Price
N/A
Male Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.75 MM2; X43/11; X43/12]
N/A
N/A
Cover Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [X18 / 51B] Only For Use With [68011342AA]
1
2
3
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [1.5 - 2.5 MM2 SLK 2.8, X18 / 23 S]
12
14
Connector, Right, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: 68011247AA. [4 Pin; X8/20]
16
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Anti-Theft Alarm Interior Protection [2 Pin MQS; X42/28]
18
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Anti-Theft Alarm Protection [2 Pin MQS; X42/28]

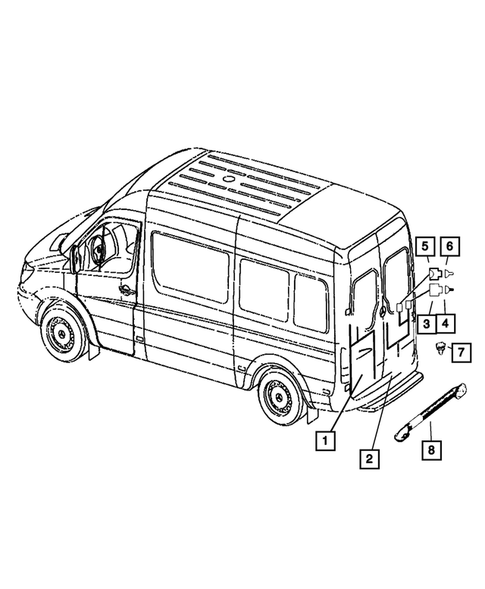

No.
Part # / Description / Price
Price
1
Rear Door Wiring, Rear Door, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: See Note
2
Rear Door Wiring, Rear Door, Right Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: See Note
3
Connector, Right & Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Heated Rear Door Window / [2 Pin SLK 2.8; X19/6B, X19/7B]
4
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4.0 MM2 SLK 2.8;X19/6 B, X19/7 B]
5
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Heated Rear Door Window / [2 Pin SLK 2.8; X19/6 S, X19/7 S]
6
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4.0 MM2 ; X19/6 S, X19/7 S]
7
Retainer Clip Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Entrance Lamp Separation Point 6.5-7MM

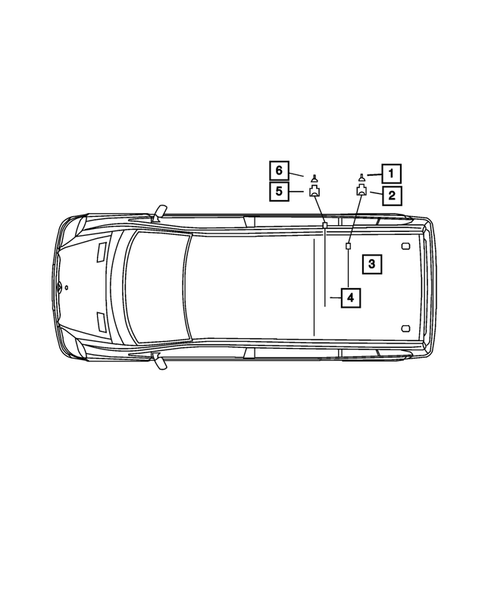

No.
Part # / Description / Price
Price
1
Male Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [1.0 - 2.5 MM2; A2/18]
2
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Blower Stage [1] Plug Connector [ 1 Pin X31/ 10]
4
Fuel Tank Wiring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Fuel Level Sensor / After Chassis [# S 235074]
5
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Tank Connector [8-PIN;x25/15]
6

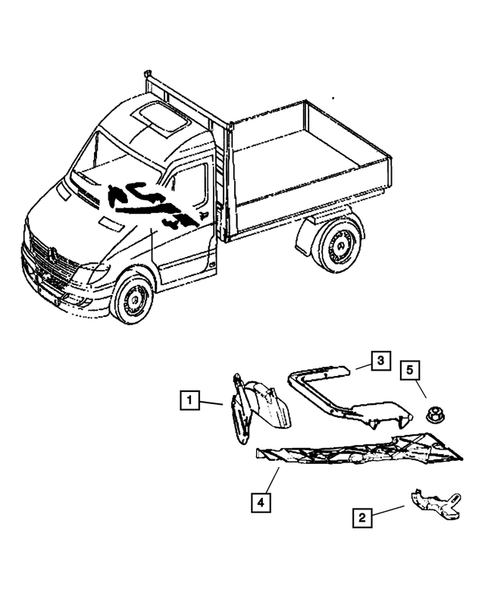

No.
Part # / Description / Price
Price
3
Wiring Shield Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Floor Channel Extension
5
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6X1.00. BSG Bracket To Intake Manifold

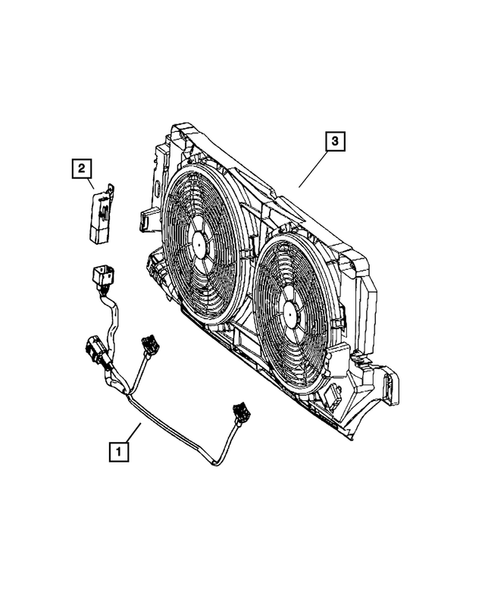

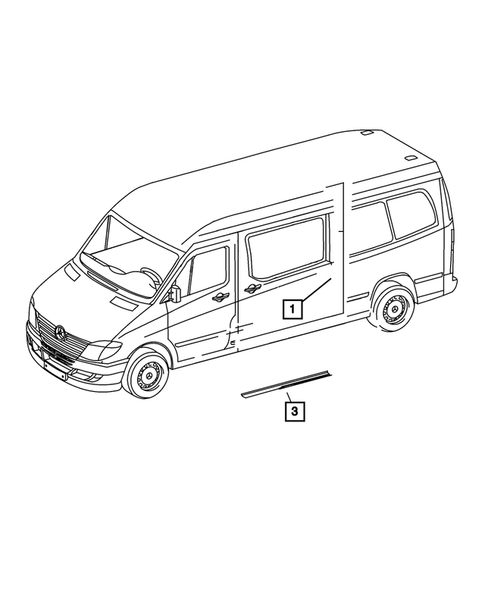

No.
Part # / Description / Price
Price
